2.3.1 Attach BL1810 to Prototyping Board
To attach the BL1810 to the Prototyping Board, turn the BL1810 over so that the battery is
facing up. Plug the pins from headers J4 and J5 on the bottom side of the BL1810 into the
header sockets at J2 and J6 on the Prototyping Board as indicated in Figure 2.
+
Prototyping
Board
J2
J6
JACKRABBIT PROTOTYPING BOARD
Z-World, Inc.
BL1810
Buzzer
Battery

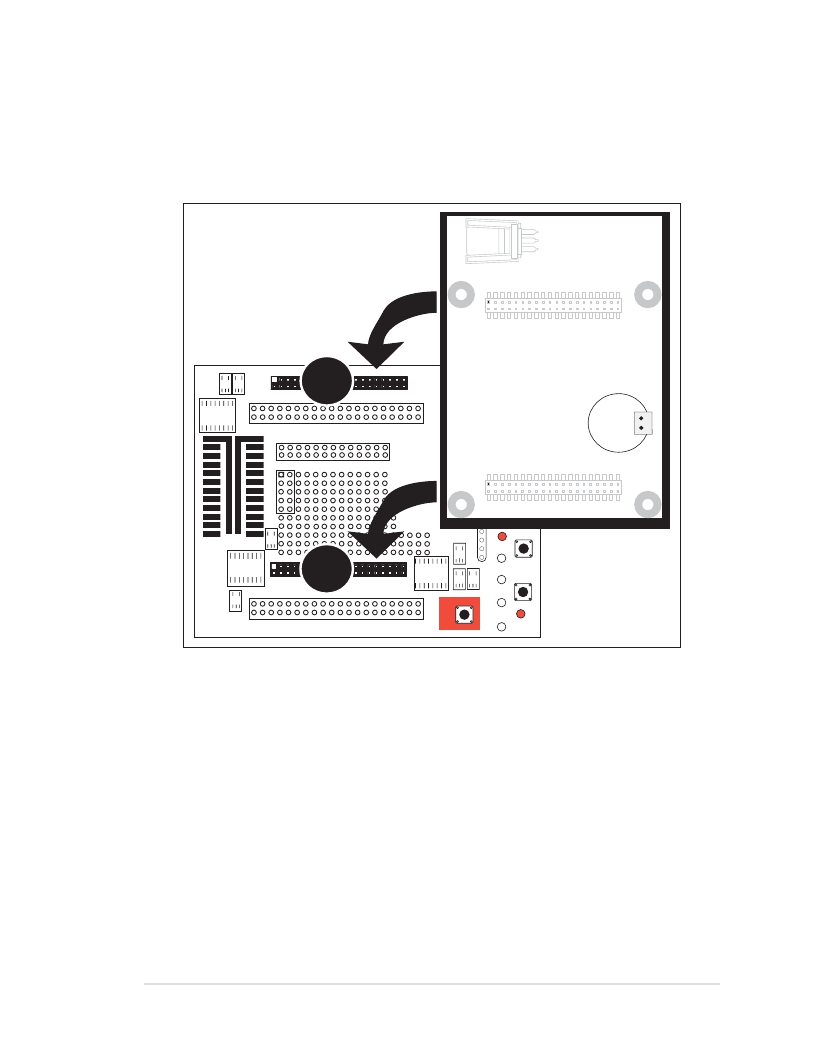

Figure 2. Attach BL1810 to Prototyping Board
NOTE: It is important that you line up the pins on headers J4 and J5 of the BL1810
exactly with the corresponding pins of header sockets J2 and J6 on the Prototyping
Board. The header pins may become bent or damaged if the pin alignment is offset, and
the BL1810 might not work. Permanent electrical damage to the BL1810 board may
also result if a misaligned BL1810 is powered up.
Press the BL1810’s pins firmly into the Prototyping Board headers.
Getting Started Manual
11
